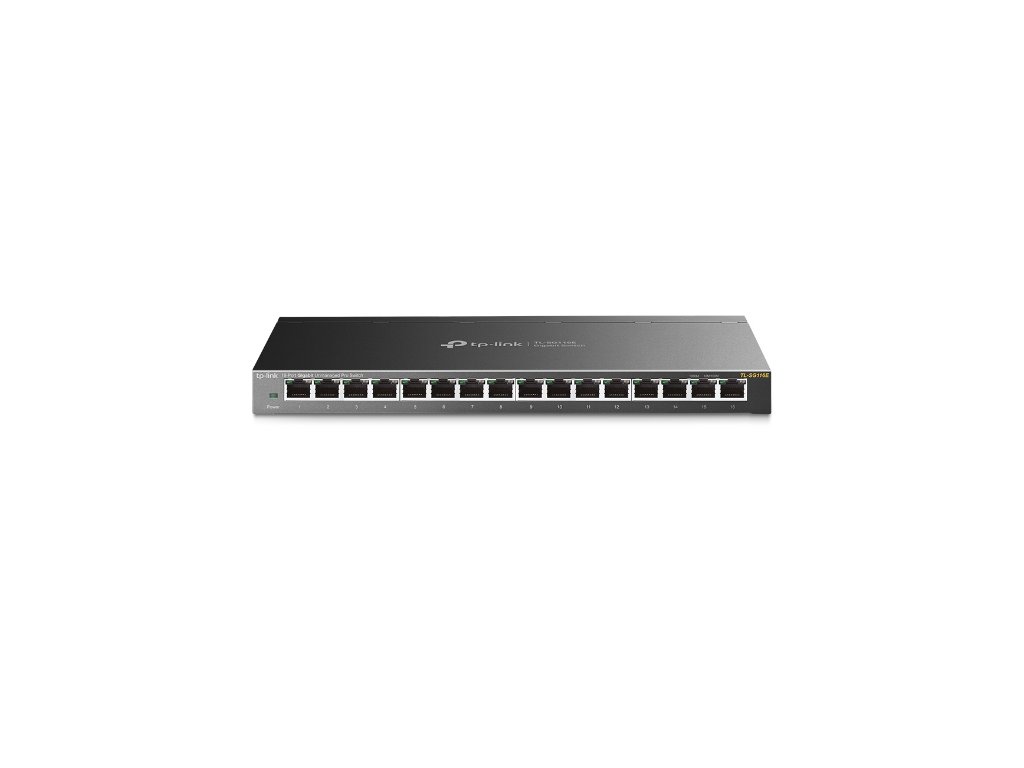

TP-Link TL-SG116E 16xGb easy smart desktop switch

Podrobný popis

TL-SG116E 16-Port Gigabit Easy Smart Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments. HARDWARE FEATURES Standards and Protocols> IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface: *16 10/100/1000Mbps RJ45 Ports *AUTO Negotiation/AUTO MDI/MDIX Network Media: *10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) *EIA/TIA-568 100? STP (maximum 100m) *100BASE-TX: UTP category 5, 5e cable (maximum 100m) *EIA/TIA-568 100? STP (maximum 100m) *1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) *EIA/TIA-568 100? STP (maximum 100m) Fan Quantity: Fanless Power Supply: External Power Adapter(Output: 9VDC/0.6A) Dimensions ( W x D x H ): 11.3*4.4*1.0 in. (286*111.7*25.4 mm) Max Power Consumption: 9.19W(220V/50Hz) Max Heat Dissipation: 31.36BTU/h PERFORMANCE Switching Capacity: 32Gbps Packet Forwarding Rate: 23.81Mpps MAC Address Table: 8K Packet Buffer Memory: 4.1Mb Jumbo Frame: 9KB SOFTWARE FEATURES Quality of Service: *Support Port-based/802.1p/DSCP priority *Support 4 priority queues *Rate Limit *Storm Control L2 Features: *IGMP Snooping V1/V2/V3 *Static Link Aggregation *Port Mirroring *Cable Diagnostics *Loop Prevention VLAN: *Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) *MTU/Port/Tag VLAN Transmission Method: Store-And-Forward OTHERS Certification: FCC, CE, RoHS Package Contents: *TL-SG116E *Power Cord *Installation Guide *Rubber Feet System Requirements: Microsoft® Windows® for running Utility Environment: *Operating Temperature: 0?~40? (32?~104?) *Storage Temperature: -40?~70? (-40?~158?) *Operating Humidity: 10%~90% non-condensing *Storage Humidity: 5%~90% non-condensing
