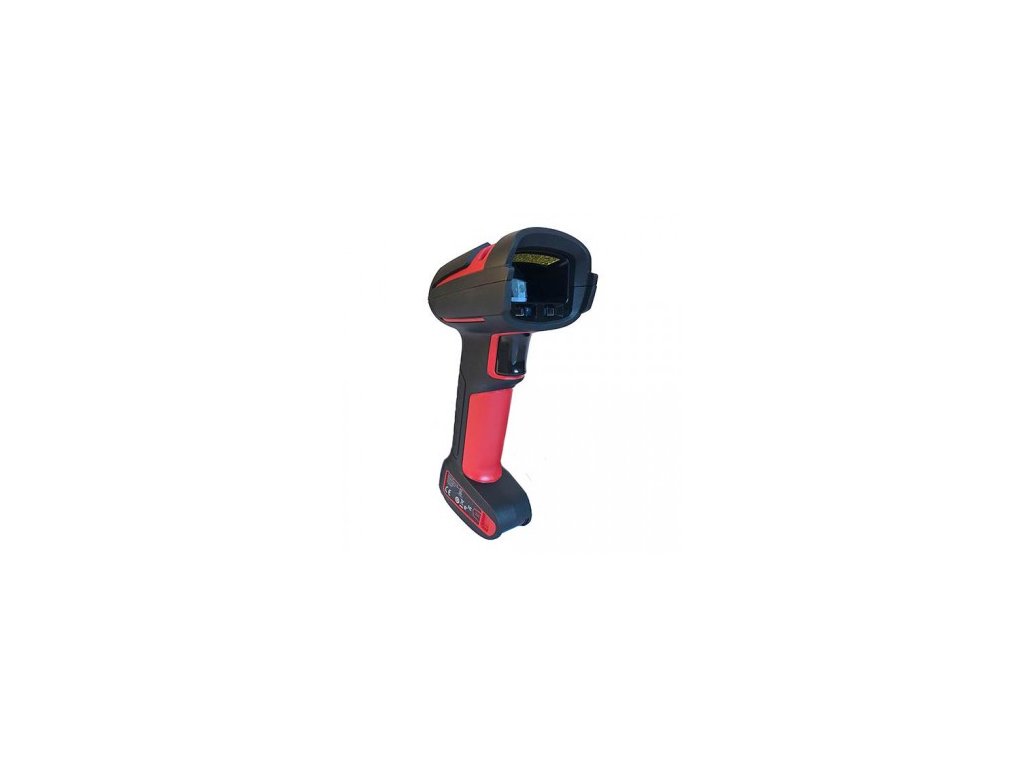

Honeywell Granit 1991 Standard Range - BT, USB kit, base

Podrobný popis

Honeywell Granit 1991 Standard Range



MECHANICAL

Dimensions - Scanner (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 inx 3.9 in)

Dimensions - Base (L x W x H): 245 mm x102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in)

Weight - Cordless: 405 g (14.3 oz)

WIRELESS

Radio/Range: 2.4 GHz (ISM Band)Adaptive Frequency Hopping Bluetooth®v4.2, Class 1: 100 m (330 ft) line of sight

POWER OPTIONS

Battery: 2450 mAh Li-ion minimum

Number of Scans: Up to 50,000 scans percharge

Expected Duration of Operation:14 hours (1 scan per second)

User Indicators: Good Decode LEDs,Beeper (adjustable tone and volume),Vibration (adjustable), Bluetooth®connectivity, Battery status

ELECTRICAL

Input Voltage: 4.0 VDC to 5.5 VDC

Operating Power - Cordless: 5 W(1000 mA @ 5 VDC)

Standby Power - Cordless (non-chargingpower): 0.6 W (120 mA @ 5 VDC)

Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL

ENVIRONMENTAL


Operating Temperature*: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -40°C to 70°C(-40°F to 158°F)

Humidity: Up to 95% relative humidity,non-condensing

Drop:2 m (6.5 ft): 50 drops from -30°C to50°C (-22°F to 122°F), uncontrolled RH2.4 m (8 ft): 20 drops at 25°C (77°F),55% RH3 m (10 ft): MIL-STD-810G, 25°C (77°F),55% RH

Tumble: 7,000 1 m (3.3 ft) tumbles

Environmental Sealing - Scanner:IP67 and IP65

Environmental Sealing -Charge/Communication Base: IP51

Light Levels: 0 to 100,000 lux(9,290 foot-candles)

ESD: ±20 kV air discharge, ±8 kV contactdischarge

SCAN PERFORMANCE



Scan Pattern: Area Imager (1280 x 800pixel array)

Motion Tolerance: Up to 4500 mm/s(177 in/s)

Scan Angle: Horizontal: 40°, Vertical: 30°Print Contrast: 20% minimum reflectance difference

Roll, Pitch, Skew: -360°, 45°, 65°

Decode Capabilities: Reads standard 1D,PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies

Warranty - Scanner: Three-year factory warranty

Warranty - Battery Pack: One-year factory warranty
