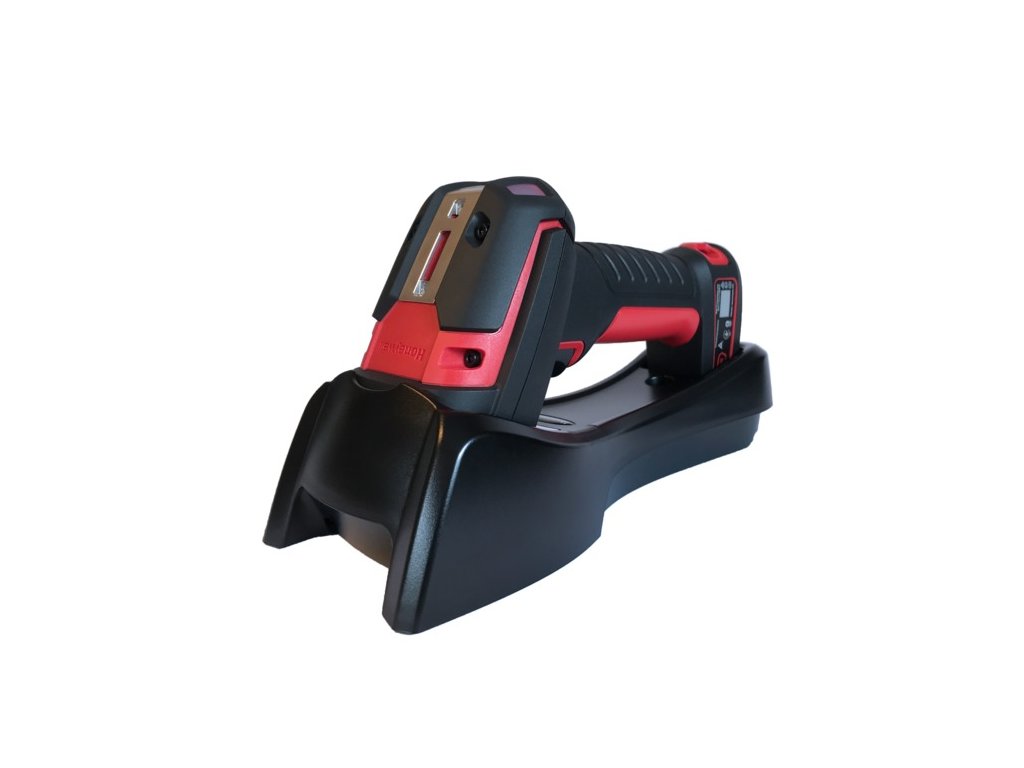

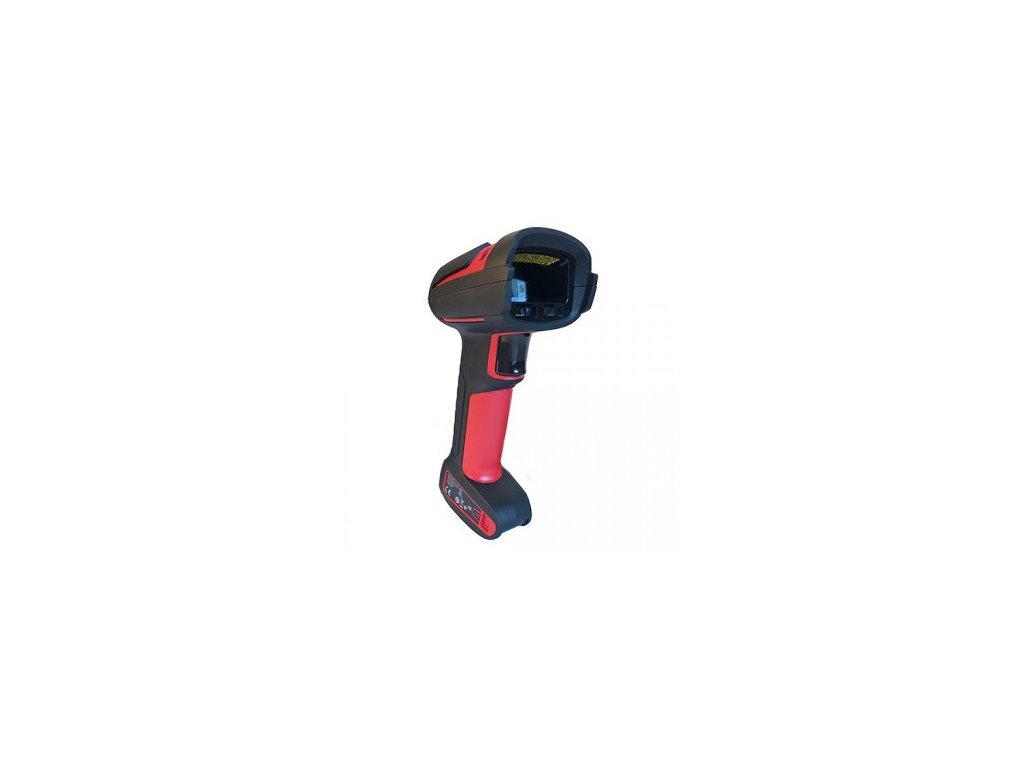

Honeywell Granit 1991 Flex Range - BT, USB kit, base

Podrobný popis

MECHANICAL Dimensions – Scanner (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in) Dimensions – Base (L x W x H): 245 mm x 102 mm x 60 mm (9.6 in x 4.0 in x 2.4 in) Weight – Cordless: 405 g (14.3 oz) WIRELESS Radio/Range: 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2, Class 1: 100 m (330 ft) line of sight POWER OPTIONS Battery: 2450 mAh Li-ion minimum Number of Scans: Up to 50,000 scans per charge Expected Duration of Operation: 14 hours (1 scan per second) User Indicators: Good Decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Bluetooth® connectivity, Battery status ELECTRICAL Input Voltage: 4.0 VDC to 5.5 VDC Operating Power – Cordless: 5 W (1000 mA @ 5 VDC) Standby Power – Cordless (non-charging power): 0.6 W (120 mA @ 5 VDC) Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL ENVIRONMENTAL Operating Temperature*: -20°C to 50°C (-4°F to 122°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: Up to 95% relative humidity, non-condensing Drop: *2 m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH *2.4 m (8 ft): 20 drops at 25°C (77°F), 55% RH *3 m (10 ft): MIL-STD-810G, 25°C (77°F), 55% RH Tumble: 7,000 1 m (3.3 ft) tumbles Environmental Sealing – Scanner: IP67 and IP65 Environmental Sealing – Charge/Communication Base: IP51 Light Levels: 0 to 100,000 lux (9,290 foot-candles) ESD: ±20 kV air discharge, ±8 kV contact discharge SCAN PERFORMANCE Scan Pattern: Area Imager (1280 x 800 pixel array) Motion Tolerance: Up to 4500 mm/s (177 in/s) Scan Angle: Horizontal: 40°, Vertical: 30° Print Contrast: 20% minimum reflectance difference Roll, Pitch, Skew: -360°, 45°, 65° Decode Capabilities: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies Warranty – Scanner: Three-year factory warranty Warranty – Battery Pack: One-year factory warranty
