ASUS PRIME B450-PLUS/AM4/ATX

Podrobný popis

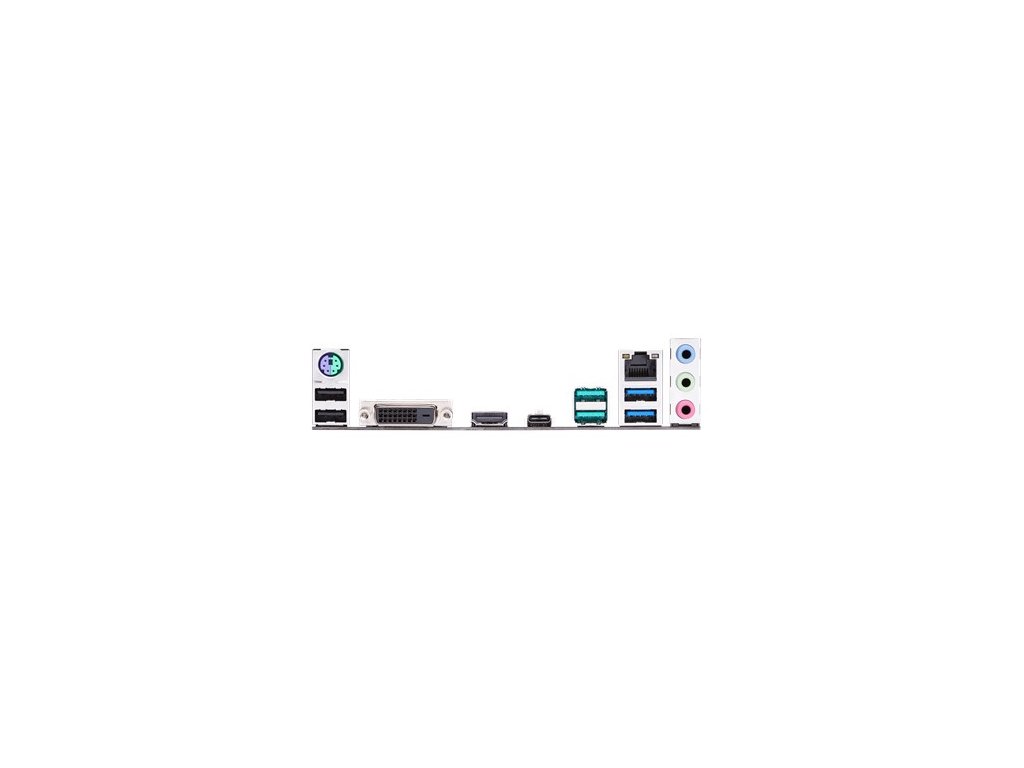

Technické specifikace: Formát: ATX (30.5 cm x 23.4 cm) CPU: AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores Čipová sada: AMD B450 Operační paměť: 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Lan: Realtek® RTL8111H, ASUS LAN Guard Zvuk: Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC Úložný prostor: AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : -1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) -2 x SATA 6Gb/s port(s) AMD B450 chipset : -4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 ¨ Rozšiřující sloty: AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors -1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor -1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset -1 x PCIe 2.0 x16 (max at x4 mode) -3 x PCIe 2.0 x1 Externí porty: -1 x PS/2 keyboard/mouse combo port(s) -1 x DVI-D -1 x HDMI -1 x LAN (RJ45) port(s) -1 x 5Gb/s port(s) USB Type-CTM -2 x USB 3.1 Gen 2 (teal blue)Type-A, -2 x USB 3.1 Gen 1 (blue) Type-A, -2 x USB 2.0 -3 x Audio jack(s) Interní porty: -1 x Aura RGB Strip Header -1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) -2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) -1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) -6 x SATA 6Gb/s connector(s) -1 x CPU Fan connector(s) (1 x 4 -pin) -3 x Chassis Fan connector(s) (3 x 4 -pin) -1 x AIO_PUMP connector (1 x 4 -pin) -1 x 24-pin EATX Power connector(s) -1 x 8-pin ATX 12V Power connector(s) -1 x Front panel audio connector(s) (AAFP) -1 x System panel(s) -1 x Clear CMOS jumper(s) -1 x COM port header Příslušenství: -User's manual -I/O Shield -2 x SATA 6Gb/s cable(s) -1 x M.2 Screw Package -1 x Supporting DVD Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, .... Více na stránkách https://www.asus.com/Motherboards/PRIME-B450-PLUS/specifications/ https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
